| MODEL |

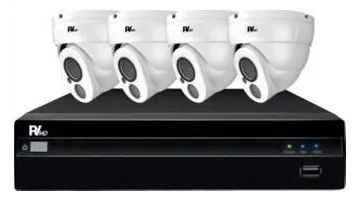

K-NVR6304-4D7 |

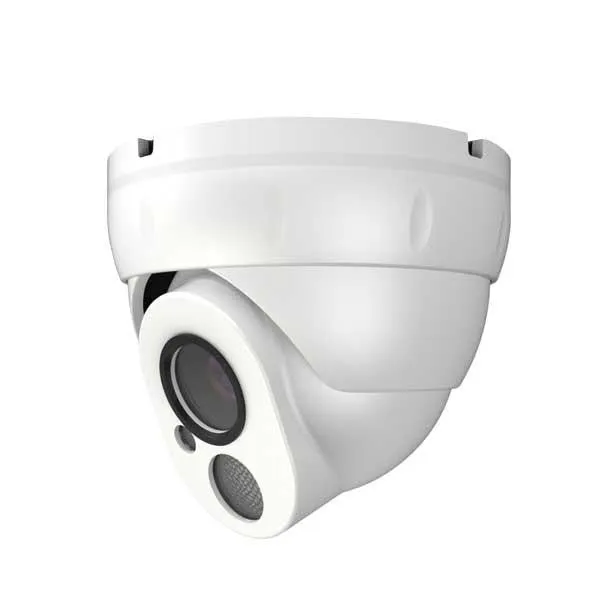

| Camera |
| Model |
W5150IHZ23 |
| Pick-up Devices |
1/4" progressive scan 1.3 MP CMOS |
| Effective Pixel |
1280(H)×720(V) |
| Min. illumination |
0 Lux (IR ON) |
| Electronic shutter |
Auto/1/25s-1/10000s |
| Day/Night |
EXT trigger, ICR |
| Lens |
3.6mm M12, ICR Model |
| IR Distance |
10-15M(1×IR3 / 30×Φ5) |
| VIDEO |
| Video Input |
4 CH 960P |
| Video compression |
H.264 (High [email protected]) |
| Video Input Resolution |
960p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Video Output |
VGA/HDMI sync output, 1920×1080, 1440×900, 1280×1024, 1366×768, 1024×768, 800×600 |
| Bit Rate |
16-8000Kbps |
| Image Display |
1/4 |
| Snapshoot |
Support (BMP) |
| Motion Detection |
396 (22×18) surveyed area can be set in every screen and multi sensitivity adjustable |
| VIDEO RECORDING AND PLAYBACK |
| Video Frame Rate |
1-30fps |
| Record Mode |
Manual / Alarm / MD / Regular |
| Playback Synchronic |
4 CH 960P simultaneous realtime playback |
| Search Method |
Time, Calendar, Event, Channel |
| Video Playback |
Start, Stop, Fast play, Slow play, Frame play, Snapshoot, Full screen,Roller amplification time ball precise playback |
| VIDEO BACKUP |
| Interface |
1 SATA |
| HDD Capacity |
Support up to 4TB HDD |
| Backup location |
Local HDD, Network |
| Backup Method |
Network, USB storage device, USB recorder |
| NETWORK MANAGEMENT |
| Protocol |
TCP/IP, HTTP, DDNS, SMTP, DHCP, PPPOE, UPNP, NTP, ONVIF, P2P |

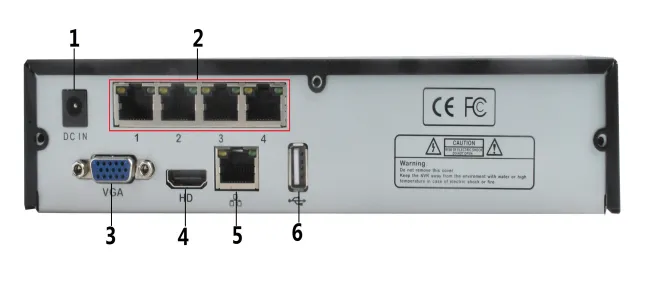

| EXT INTERFACE |
| Network Interface |
RJ45 10M/100M adaptive Ethernet port |
| RJ45 |
4 |
| Alarm |
NONE |
| RS-485 |
1 RS485 port, support FS-KT301 keyboard |
| USB Port |
2 USB2.0, support WIFI/ 3G extension |
| GENERAL |
| Operation Temp And Humidity |
-10°C ~ 55°C/10﹪-90﹪ |
| Power supply |
DC15V/3A (Power plug can be select) |
| Power Consumption |
DVR: 15W (Without HDD),IP Camera: 6W (IR ON) |
| Unit Dimension(mm) |
(L)218×(W)213×(H)48mm |
| Weight |
NVR:About 1Kg, IP Camera: About 540g |
|
